Quick Details

  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: NKCHEM
  • Model Number: NK-PPR
  • Product name: Pall ring
  • Keywords: Plastic pall ring
  • Material: PE,PP,RPP,PVC,CPVC,PVDF
  • Color: White/black
  • Size: 25,38,50,76,100mm
  • Shape: Ring
  • Certificate: SGS
  • Quality Management: ISO9001:2008
  • MOQ: 1 CBM
  • Package: Jumbo bag

Packaging & Delivery

Packaging Details jumbo bags or as per your request
Delivery Time 10 days for a 20' container

Plastic  PP/PE/RPP/PVC/PVDF Pall Ring detail



Plastic Pall Ring is versatile. This product was advanced on the basis of Plastic Rasching Ring, and compared with it,

both of them have similar cylindrical dimensions but the Plastic Pall Ring has two rows of punched out holes,

fingers or webs turned into the centre of the cylinder, which significantly increases the performance of the

packing, in terms of throughput, efficiency and pressure drop.



Advantages:
It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on.

Application:

Absorption, scrubbing, and stripping services. Versatile alternative to metal Pall rings.


A variety of different sizes of products provide the ability to optimize capacity and efficiency based on different

application requirements, and the application temperature in media ranges from 60°Cto 150°C.

Tech DaTa:

Physical & chemical properties of plastic random packing:

Performance / Material

PE

PP

RPP

PVC

CPVC

PVDF

Density (g/cm3)

0.94-0.96

0.89-0.91

0.93-0.94

1.32-1.44

1.50-1.54

1.75-1.78

Operation Temp.(ºC)

90

>100

>120

>60

>90

>150

Chemical corrosion resistance

Good

Good

Good

Good

Good

Good

Compression Strength(Mpa)

>6.0

>6.5

>7.0

>6.0

>8.0

>10.0





Name

Normal
mm

Diameter*Height*
Thickness mm

Surface area
m2/m3

Void space
%

Bulk density
kg/m3

No.elements
per/m3

Packing factor
m-1

Pall ring

ø25

25*25*1.2

213

91

85

48300

285

ø38

38*38*1.4

151

91

82

15800

200

ø50

50*50*1.5

100

92

60

6300

130

ø76

76*76*2.6

72

92

62

1930

92

The bulk density given here is based on PP material



Main Products:

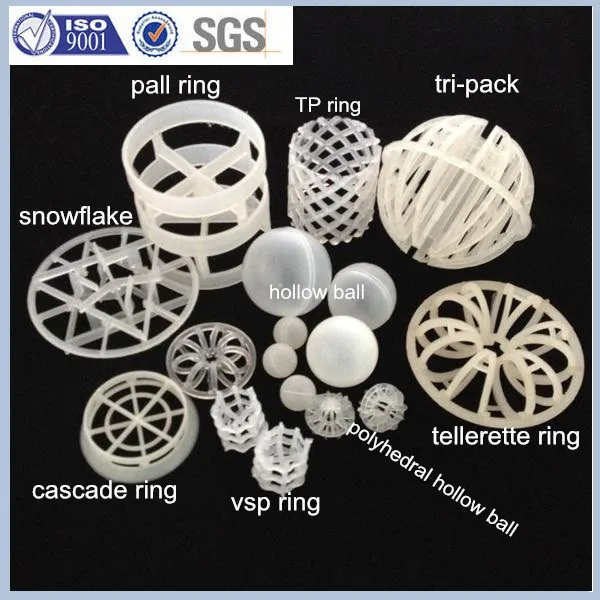

Plastic Structured Packing, Plastic Cage Ball, Plastic Pall Ring, Plastic Cascade Ring, Plastic Super Intalox,

Plastic Tellerette Ring, Plastic Heilex Ring, Polyhedral Hollow Ball, Plastic Hollow Floatation Ball,

Plastic Conjugate Ring, Plastic Intalox Saddles, etc...The material of products also can be made of ceramic or metal.
